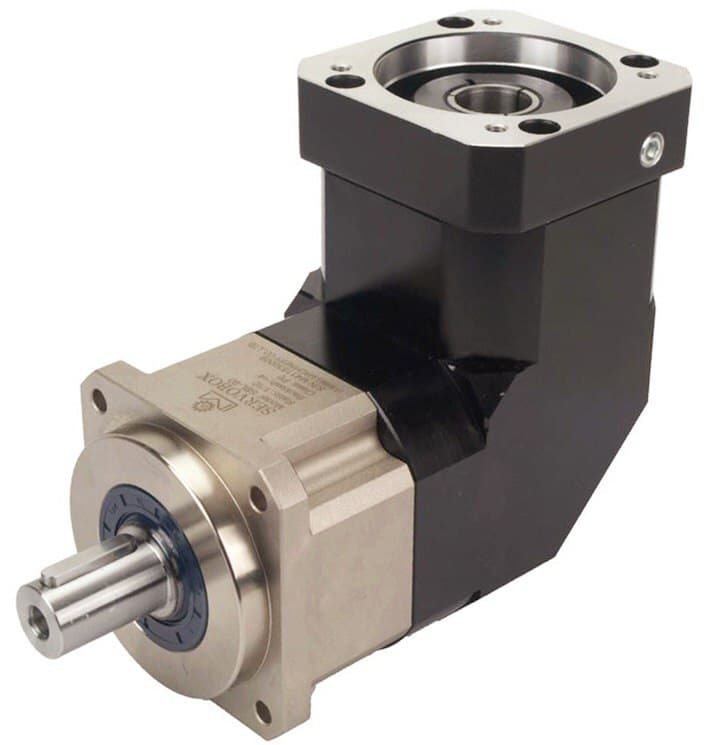

SB Series

High Precision Planetary Gearbox

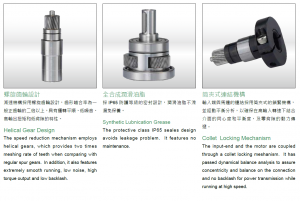

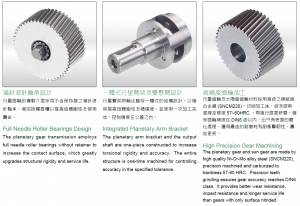

SERVOBOX series high precision planetary gear reducer employs helical gears. All gears are high precision machined by CNC gear hobing machine, providing high accuracy gear engagement, smooth running and minimum noise.

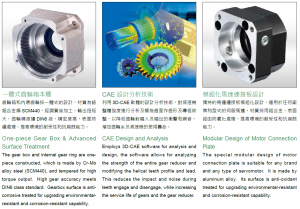

LIMING gear box is one-piece fabricated. When comparing with the competitive gear reducer, LIMING gear reducer features smaller construction (saves over 1/4 of size and weight), higher output torque and higher transmission efficiency. It’s widely used in different machine and applications such as: CNC machines, industrial robots.

• Ratio range : 3~200
• Size range: 44,62,90,120,142,180, 220
• Max acceleration torque: 1.8 times of rated torque
• Max output torque: 3 times of rated torque
• Backlash: <2~8 arcmin for one stage, <4~12 arcmin for 2 stage
• Efficiency: Higher than %97
