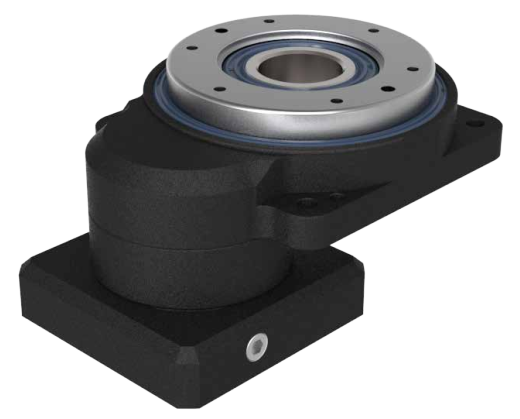

GT Series

High Precision Hollow Rotary Reducer

GT Series is high precision grinding spiral bevel and helical gears contribute to reduce vibration and noise. High rigidity and high torque are achieved by crossed roller bearing. High quality material and precision gears used for making this series. It’s widely used in different machine and applications such as: 4th axis of CNC machines, industrial robots.

• Ratio range : 5~100
• Size range: 60,85,110,135,170,200,250
• Max acceleration torque: 1.2 times of rated torque
• Max output torque: 2 times of rated torque
• Torsional Backlash: Lower than 1 arcmin for one stage
• Repetitive Positioning Accuracy: +/-10 arcsec
• Efficiency: Higher than %98
