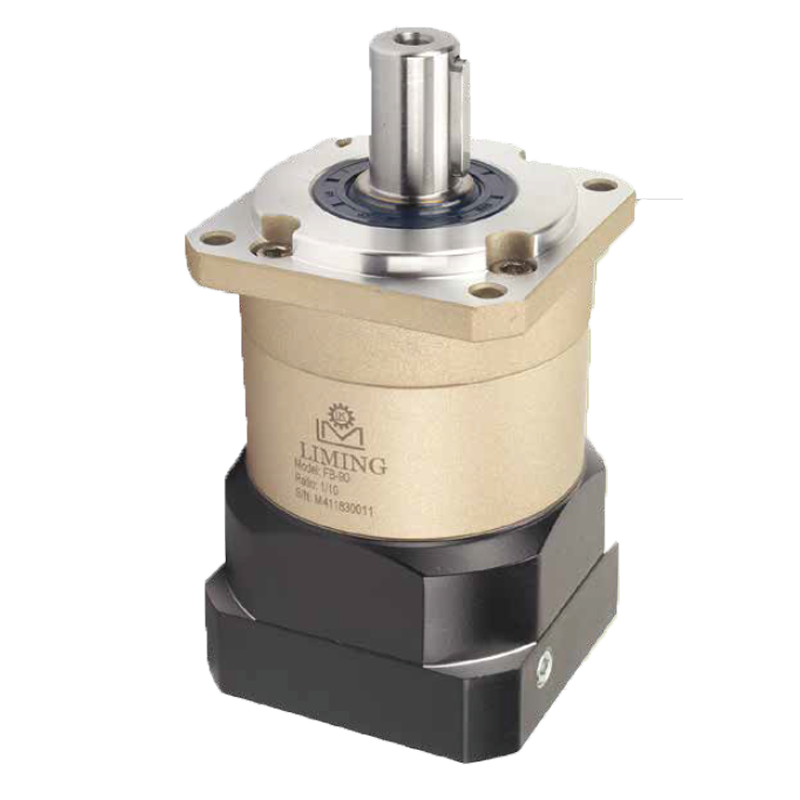

FB Series

Precision Planetary Gearbox

FB Series is precision planetary gearbox made by Liming company. High quality material and precision gears used for making this series. It’s widely used in different machine and applications such as: CNC machines, industrial robots.

  • Ratio range : 3~100
  • Size range: 50,70,90,120,145,180,220
  • Max acceleration torque: 1.8 times of rated torque
  • Max output torque: 3 times of rated torque
  • Backlash: Lower than 8 arcmin for one stage, lower than 12 arcmin for 2 stage
  • Efficiency: Higher than %97
Catalogue

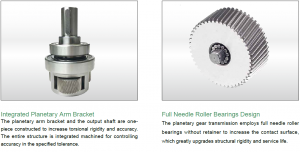

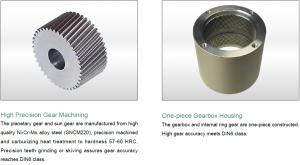

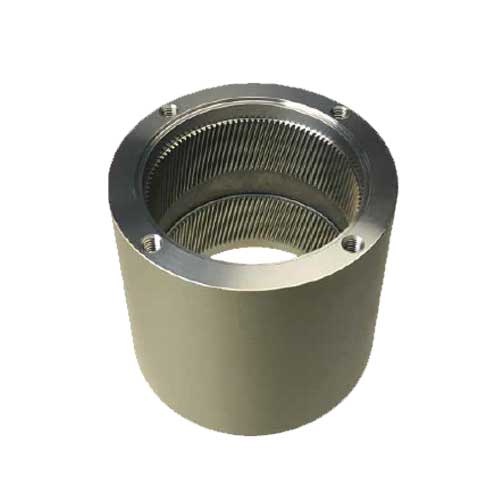

Features of FB Series

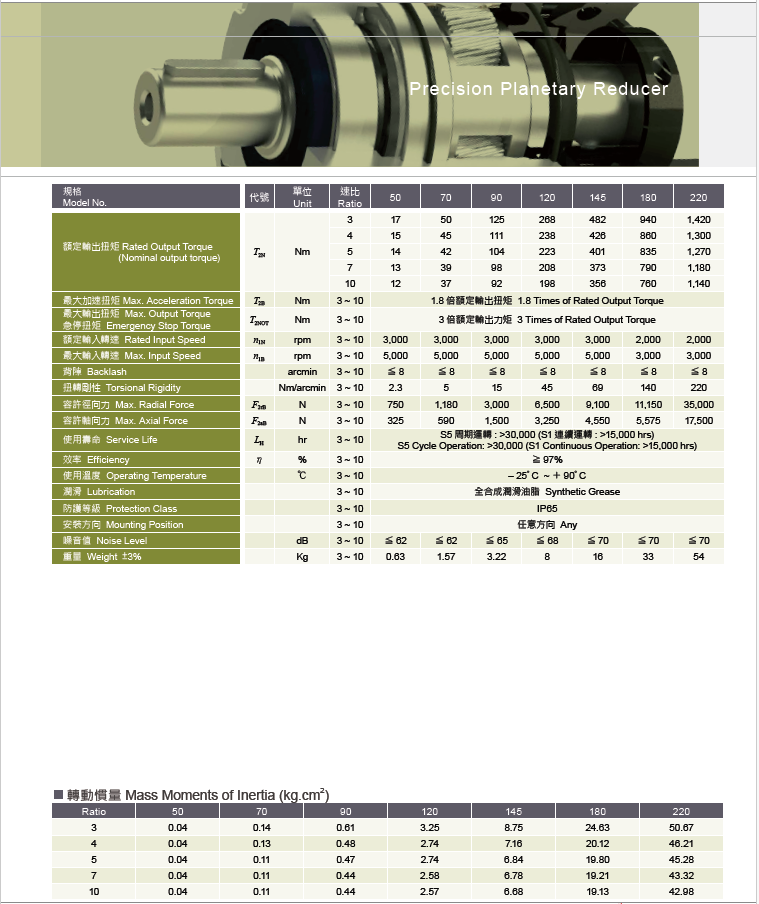

Single Stage Drawing & Specification

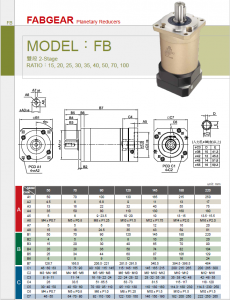

Double Stage Drawing & Specifiaction
